A fairly simple method to upright a load is to lift with a crane while moving horizontally. In our March 1996 Issue, we discussed the use of a step block to help avoid "flop-over" or shock load if the load's CG passes its tipping axis. In this workshop you are asked to determine the loading in all five stages of lifting.
Study Panel 2 of the Journeyman Rigger's Reference Card. See how the illustrations on this page relate to the information on the rigging card.

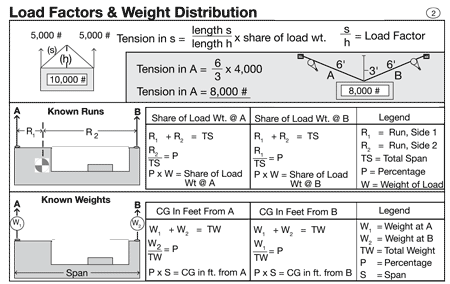

Journeyman Rigger's Reference Card Panel 2:

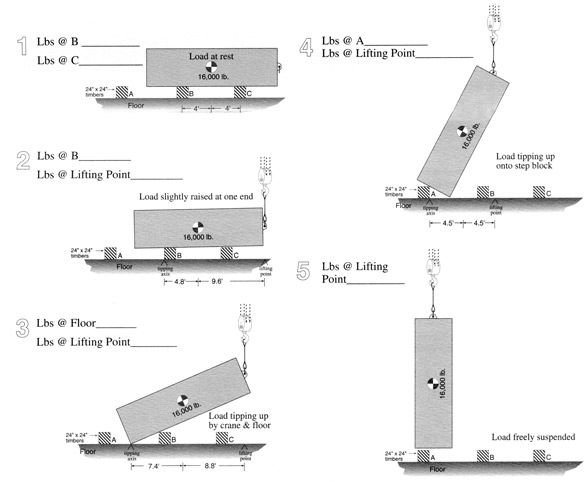

Workshop:
Determine the loading in pounds for each of the following (answers below):
Happy trails to all my crane and rigging friends,
Mike Parnell
ITI-Field Services
P.S. This article was originally published in The Professional Rigger Newsletter - Lift and Turn.

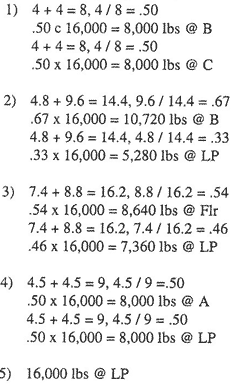

Workshop Answers:
