Rigging Training Workshop - Find CG by Test Lift

With four quick lifts, raising the load only a few inches, a rigger can confirm:

a) The load's estimated weight
b) The load's approximate center of gravity (CG)
c) The approximate load at each pick point

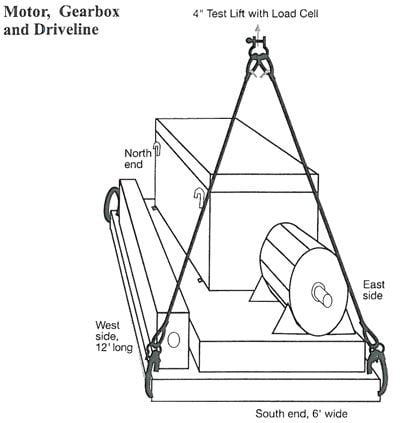

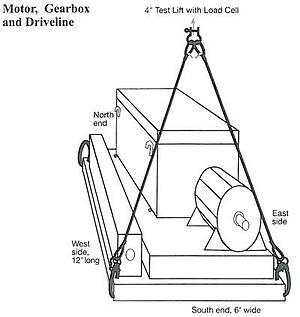

Find the approximate weight and the location of the CG of the load in the diagram. Answers are provided below.

rigging workshop

Happy trails to all my crane and rigging friends,
Mike Parnell
ITI-Field Services

P.S.  This article was originally published in The Professional Rigger Newsletter - Find CG by Test Lift.



Answers:

rigging workshop answers
